Channel Induction Furnaces

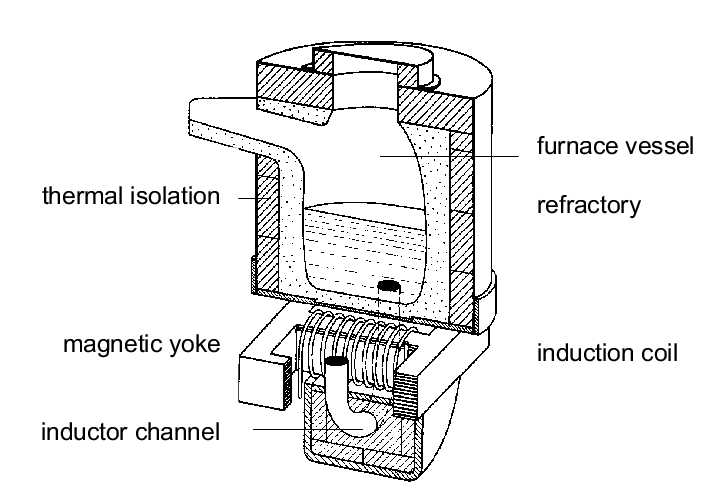

The channel induction furnace consists of a refractory lined steel shell that contains molten metal. Attached to the steel shell and connected by a flange is an induction unit that forms the melting component of the furnace.

The induction unit consists of a magnetic special iron core in the form of a ring around which a primary induction coil is wound. This assembly forms a simple transformer in which the molten metal loops comprise the secondary component.

The heat generated within the loop causes the metal to circulate into the main well of the furnace. The circulation of the molten metal affects a useful stirring action in the melt.

Channel induction furnaces are commonly used for melting low melting point alloys and or as a holding and superheating unit for higher melting point alloys such as cast iron. Channel induction furnaces can be used as holders for metal melted off-peak in coreless induction, channel units thereby reducing total melting costs by avoiding peak demand charges.

Channel Induction furnaces when high production operations need a large throughput of metal, few alloy changes are needed, and when you need the holding capacity to shift melting operations to take advantage of off-peak energy costs or the lowest energy consumption in multi-shift operations.
